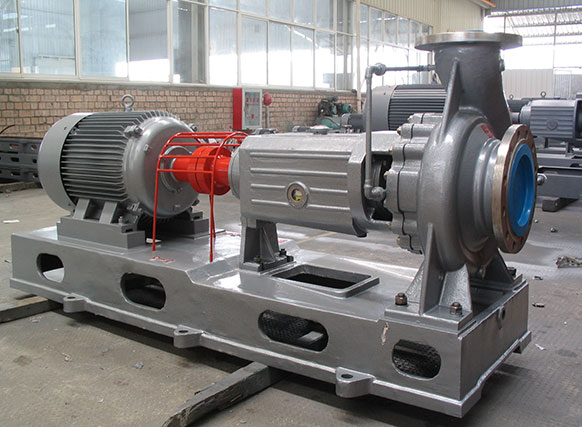

HCZ系列耐腐蝕化工流程泵性能參數表(5)

發布時間:2019-10-26 瀏覽次數：2782

規格	性能參數						配用電機（按照介質比重）			汽蝕余量 m req	進口法蘭直徑
規格	轉速 r/min	葉輪型式	流量 (m3/h)	揚程 (m)	效率 %	軸功率 kw	γ=1.0	γ=1.35	γ=1.84	汽蝕余量 m req	進口法蘭直徑
80-315	1450	A	100	32	72.5	12.02	Y160L-4/15	Y180M-4/18.5	Y200L-4/30	1.3	125
		B	95	30	72.5	10.7	Y160M-4/11	Y160L-4/15	Y180L-4/22
		C	85	24	72.5	7.66	Y160M-4/11	Y160M-4/11	Y160L-4/15
		D	70	18	72.5	4.73	Y132S-4/5.5	Y132M-4/7.5	Y160M-4/11
	2900	A	200	130	76.5	92.52	Y315S-2/110	Y315M1-2/132	Y315L-2/180	5.5	125
		B	180	125	76.5	80.07	Y280M-2/90	Y315S-2/110	Y315M2-2/160
		C	160	100	76.5	56.94	Y280S-2/75	Y280M-2/90	Y315S-2/110
		D	150	75	76.5	40.03	Y225M-2/45	Y250M-2/55	Y280S-2/75
80-400	1450	A	105	52	63	23.59	Y200L-4/30	Y225S-4/37	Y225M-4/45	1.2	125
		B	100	50	63	21.6	Y180L-4/22	Y200L-4/30	Y225M-4/45
		C	90	44	63	17.11	Y180M-4/18.5	Y200L-4/30	Y225S-4/37
		D	80	38	63	13.14	Y160L-4/15	Y180M-4/18.5	Y200L-4/30
		E	75	30	63	9.72	Y160M-4/11	Y160L-4/15	Y180M-4/18.5
100-200	1450	A	115	11	80	4.31	Y132S-4/5.5	Y132M-4/7.5	Y160M-4/11	1.2	125
		B	100	10	80	3.4	Y112M-4/4	Y132S-4/5.5	Y132M-4/7.5
		C	90	8	80	2.45	Y100L-4/3	Y112M-4/4	Y132S-4/5.5
		D	80	6	80	1.63	Y100L1-4/2.2	Y100L2-4/3	Y112M-4/4
	2900	A	220	45	81	33.27	Y200L2-2/37	Y225M-2/45	Y250M-2/55	4	125
		B	200	40	81	26.89	Y200L1-2/30	Y200L2-2/37	Y250M-2/55
		C	180	30	81	18.15	Y160L-2/18.5	Y200L1-2/30	Y200L2-2/37
		D	150	25	81	12.6	Y160M2-2/15	Y160L-2/18.5	Y200L1-2/30
100-250	1450	A	130	20	75.5	9.37	Y160M-4/11	Y160L-4/15	Y180M-4/18.5	1.8	125
		B	130	18	75.5	8.44	Y160M-4/11	Y160L-4/15	Y180M-4/18.5
		C	120	14	75.5	6.06	Y132M-4/7.5	Y160M-4/11	Y160L-4/15
		D	100	10	75.5	3.61	Y112M-4/4	Y132S-4/5.5	Y132M-4/7.5
	2900	A	280	75	81.5	70.14	Y280S-2/75	Y132S-2/110	Y315M1-2/132	4.5	125
		B	250	70	81.5	58.45	Y280S-2/75	Y280M-2/90	Y315S-2/110
		C	230	55	81.5	42.25	Y225M-2/45	Y280S-2/75	Y280M-2/90
		D	200	40	81.5	26.72	Y200L1-2/30	Y225M-2/45	Y250M-2/55
100-315	1450	A	132	32	72	15.97	Y180M-4/18.5	Y180L-4/22	Y200L-4/30	1.5	125
		B	120	30	72	13.61	Y160L-4/15	Y180M-4/18.5	Y200L-4/30
		C	100	26	72	9.83	Y160M-4/11	Y160L-4/15	Y180M-4/18.5
		D	90	21	72	7.15	Y132M-4/7.5	Y160M-4/11	Y160M-4/15
	2900	A	270	135	75.5	131.4	Y315M2-2/160	Y315L-2/180	Y3554-4/250	5	125
		B	250	130	75.5	117.8	Y315M1-2/132	Y315M2-2/160	Y3553-4/220
		C	230	100	75.5	82.93	Y280M-2/90	Y315M1-2/132	Y315M2-2/160
		D	200	85	75.5	61.3	Y280S-2/75	Y280M-2/90	Y315M1-2/132
